Audit for Cameras & Spectrometers

Verification of luminance and color accuracy

Audit for Cameras & Spectrometers

Audit for Cameras & Spectrometers

Verification of luminance and color accuracy

The Instrument Systems audit station was designed for the simple and precise verification of luminance and color accuracy of imaging colorimeters and/or array spectroradiometers. This may take place in the course of incoming quality control (IQC) or a regular inspection (audit) of the instruments.



Key Features:

- All-in-one solution for professional camera or CAS spectrometer audits

- Light-shielded box

- Homogeneous light sources and LED calibration standards with accompanying power source

- IQC audit software

- Automatic evaluation of results (pass/fail)





ComponentDescription

Software

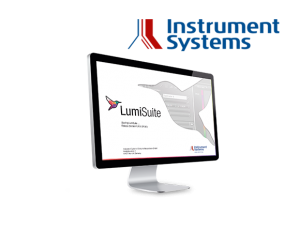

Special IQC software that handles the complete process sequence semi-automatically: from measurement, analysis and evaluation of the results (pass/fail) to the generation of a report.

Light-shielded box

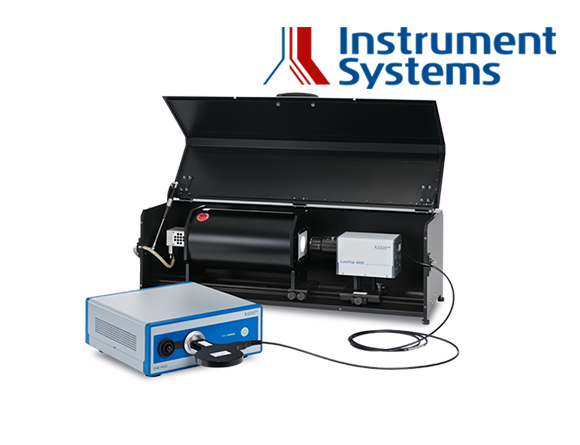

Fully equipped box with an optical rail, tabs and distance gauge. Cable ducts to the outside are provided. The box protects the measurement from ambient light. Outside dimensions 920x335x323 mm³ (closed).

Camera audit light sources (optional)

Set consisting of homogeneous light sources (LED flat-field light source, LED-FS). The use of three different light sources is a prerequisite for the IQC process and software.

Spectrometer audit light sources (optional)

Set of three ACS-585 (LED calibration standard) with reference values for luminance and color coordinate. The use of three different light sources is a prerequisite for the IQC process and IQC software.

Power source

PSU 10 controller for stable operation of the LED-FS or ACS-585 with regard to power and temperature.

Imaging colorimeter
(not included in the system)

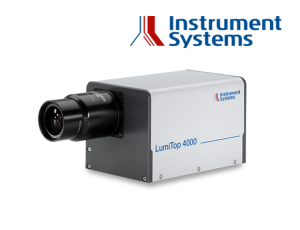

Spectrally optimized LumiTop 2700/4000 luminance and imaging colorimeter.

Spectroradiometer
(not included in the system)

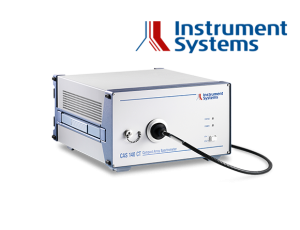

CAS 140CT/D-151 (VIS) for the spectral range from 360–830 nm, part of the all-in-one systems with LumiTop 2700/4000.
